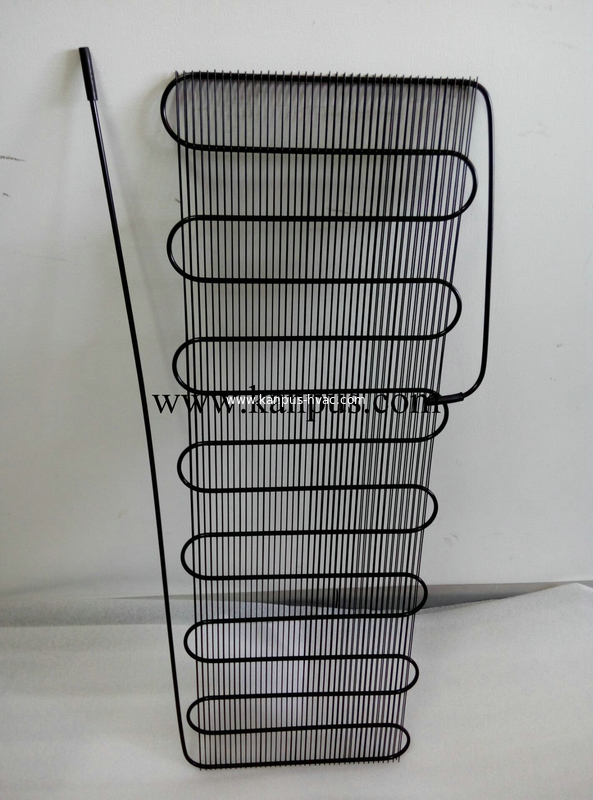

Water dispenser wire tube condenser (bundy tube condenser, dispenser parts)

Water dispenser wire tube condenser (bundy tube condenser, dispenser parts)

Water dispenser wire tube condenser (bundy tube condenser,  dispenser parts)

Product Details:

Place of Origin: China
Model Number: 7U

Payment & Shipping Terms:

Minimum Order Quantity: 1000pcs
Packaging Details: carton
Delivery Time: 20 days after payment
Payment Terms: T/T
Contact Now
Detailed Product Description

Main material

 1) Rolling welded steel tube:O.Dφ4.76mm~O.Dφ6.35mm,wall thickness 0.71mm
 2) Low carbon steel wire O.Dφ1.4mm~φ1.6mm


Performance
 1)Surface with electrophoresis coating to prevent the corrosion.
 2)Inner cleanness can meet the requirement of CFC &R134a cooling system.
 3)Can satisfy the cooling capability requirements.


Specification of R134a refrigerator
  Residual moisture       ≤20mg/㎡
  Residual impurity       ≤30mg/㎡
  Residual mineral oil    ≤7mg/㎡
  Residual chlorine       ≤0.3mg/㎡
  Residual paraffin       ≤0.2mg/㎡

Specification of coating

Coating thickness thickness of cathodic electrophoresis Coating≥18μm;

Hardness of coating   ≥2H

Impact of coating    50cm .kg/cm impact, no crack

Adhesion of coating   ≥two grade

Flexibility of coating Around R=3D bebd 180°,no crack or no fall off

Color tolerance of     △E≤1.5

Corrosion resistant (salt spray GB2423) ≥150h.


We can provide the product according customer's drawing or samples.
