Air conditioner 4 way reversing valve (air conditioning parts, refrigeration valve, HVAC/R valve)

Air conditioner 4 way reversing valve (air conditioning parts, refrigeration valve, HVAC/R valve)

Air conditioner 4 way reversing valve (air conditioning parts, refrigeration valve, HVAC/R valve)

Product Details:

Place of Origin: China
Model Number: DSF-11

Payment & Shipping Terms:

Minimum Order Quantity: 200pcs
Packaging Details: carton
Delivery Time: 20 days after payment
Contact Now
Detailed Product Description

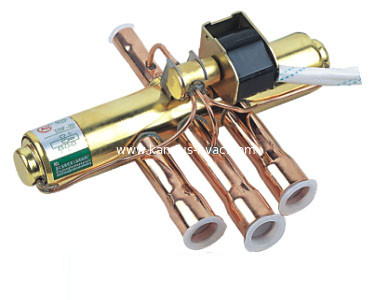

Products Show - 4 Way reversing Valve





DSF4-way Reversing Valve is the component to provide heating and cooling from the system to the conditioned space by reversing the flowing direction of refrigerant, which is used at room air conditioners, packaged and central air conditioners. Our reversing valves are designed for heat-pump systems with the capacity from 0.75PH to 12PH; they are suitable for most refrigerants such as R22. R407C, and R410A.
Basic parameter
1.Exteral leakage test pressure: 3.0 Mpa
2.Max.operating pressure: 3.0 Mpa
3.Water test pressure: With water pressure 4.4Mpa
4.Burst pressure: 14.4Mpa
5.Ambient Temperature: electricity on -20℃~+55℃
6.Relative Humidity: Less than95%RH
7.Fluid permission temperature: -20℃~+120℃
8.Min.operating Voltage: under the different press of 2.25Mpa
9.Durability:>20.000times(Grease is allowed)
10.Coil Max.temperature: +120℃
11.Noise: Not more than 45dB(A)
Coil’s electric parameter
1.Rated voltage: AC220V 50/60Hz
2.Insulation resistance: ≥100MΩ
3.Di-electricity: Under 1500 voltage for the minute of 1800 voltage for one second. No break down of flash over.
4.Power: 5~7W
5.Insulation class: B class
6.Coil temperature rise: Not more than 80K.



MODEL PORT SIZE CONNECTION O.P.D(Mpa) (ml/min) INTERNAL LEAKAGE Power(HP)
(MM) P=1.0Mpa at 70℃
D E.S.C Min Max
DSF-4U 8 8.1 9.6 0.25 2.5 <1000 0.75-1.5
DSF-9U 11 9.6 12.8 0.34 2.25 <1500 2-3
DSF-11 11.5 12.8 16 0.34 2.25 <2000 2.5-4
DSF-11U 11.5 12.8 16 0.34 2.25 <2000 2.5-4
DSF-20U 13 12.8 19.2 0.34 2.25 <4000 4-8
DSF-34 20 19.05 22.2 0.34 2.25 <6000 7.5-12
DSF-2u 4 6.1 6.1 0.125 2.5 <300 0.5-0.75
