Hermetic Sight Glass for Air Conditioning &Refrigeration, flare sight glass, brass indicator

Hermetic Sight Glass for Air Conditioning &Refrigeration, flare sight glass, brass indicator

    • Hermetic Sight Glass for Air Conditioning &Refrigeration, flare sight glass, brass indicator
    • Hermetic Sight Glass for Air Conditioning &Refrigeration, flare sight glass, brass indicator
  • Hermetic Sight Glass for Air Conditioning &Refrigeration, flare sight glass, brass indicator

    Product Details:

    Place of Origin: China
    Model Number: HLP

    Payment & Shipping Terms:

    Minimum Order Quantity: 100pcs
    Packaging Details: carton
    Delivery Time: 20 days after payment
    Payment Terms: T/T
    Contact Now
    Detailed Product Description

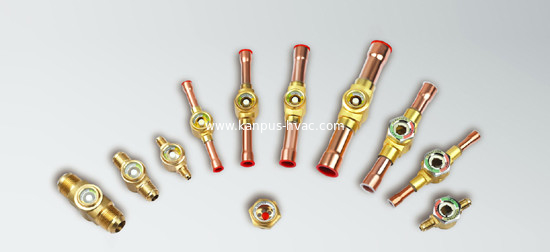

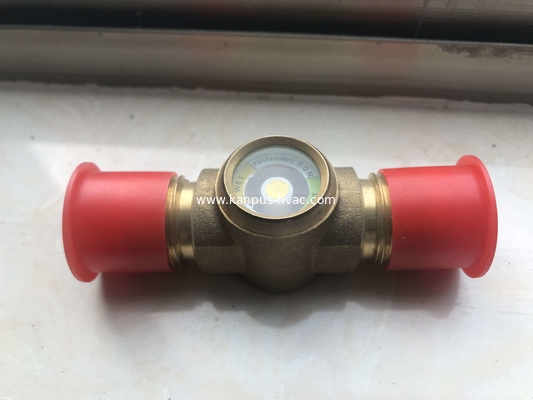

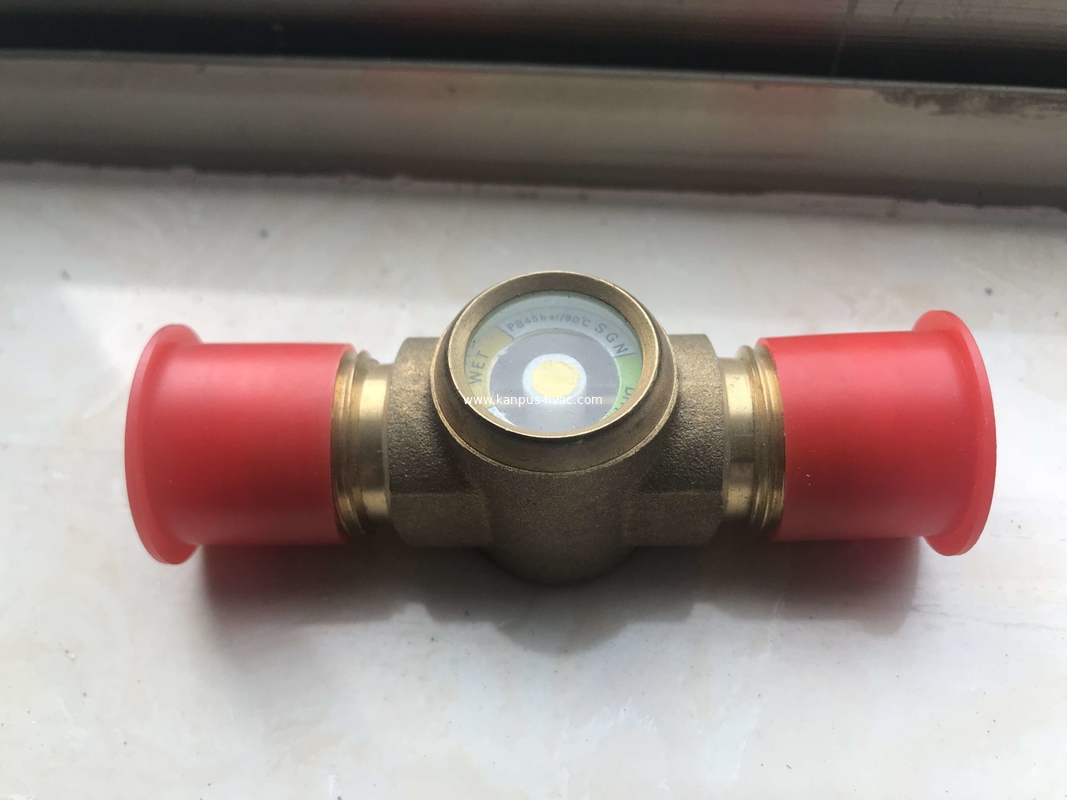

    Sight Glass SG
    SG-series sight glass(moisture indicator) is a kind of element which shows the moisture and the flow of refrigerant.
    Descriptions
    ☆ The content of refrigerant in the line of the system;
    ☆ The content of water in the refrigerant;
    ☆ Indicates the oil level of compressor crooked.
    ☆ SG-series have indicator paper whose color changes can indicate the content of water in the refrigerant;
    ☆ The glasses and the “O” ring can make sure there is no leak of the refrigerant;
    ☆ Max. Working Pressure: 35bar (500psig);
    ☆ The temperature of the medium: -50℃ ~ +110℃;
    ☆ The content of water is low, the color will change blue while high it will change pink which shows that filter dryer in the system needs to be changed.

    Specifications
    Type Port size Connection size Type Port size Connection size
    SG6 1/4"Flare 7/16"-20UNF SG6S 1/4"Solder 6.35
    SG10 3/8"Flare 5/8"-18UNF SG10S 3/8"Solder 9.52
    SG12 1/2"Flare 3/4"-16UNF SG12S 1/2"Solder 12.7
    SG16 5/8"Flare 7/8"-14UNF SG16S 5/8"Solder 15.88
    SG19 3/4"Flare 1.1/16"-14UNF SG19S 3/4"Solder 19.05
          SG22S 7/8"Solder 22.22
