Refrigerator wire tube condenser CN06, freezer condenser, water dispenser condenser HVAC

Refrigerator wire tube condenser CN06, freezer condenser, water dispenser condenser HVAC

Refrigerator wire tube condenser CN06, freezer condenser, water dispenser condenser HVAC

Product Details:

Place of Origin: China
Model Number: CN06

Payment & Shipping Terms:

Packaging Details: carton
Delivery Time: 20 days after payment
Payment Terms: T/T in advance
Contact Now
Detailed Product Description
High Light:

HVAC/R spare parts

,

refrigerator parts

,

freezer parts

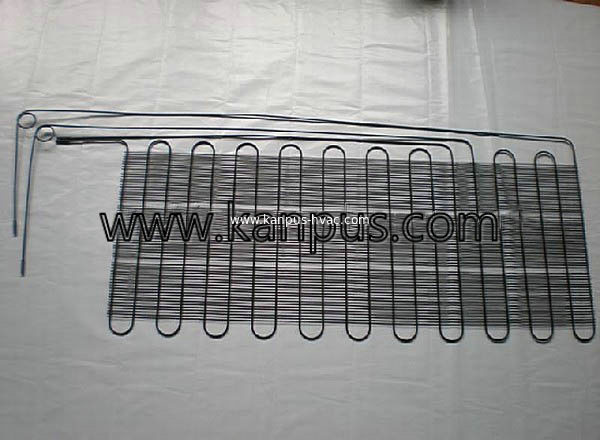

Refrigerator Condenser(Wire Tube Type)

Main material
1) Rolling welded steel tube:O.Dφ4.76mm~O.Dφ6.35mm,wall thickness 0.71mm
2) Low carbon steel wire O.Dφ1.4mm~φ1.6mm
3) Bracket: steel plate (SPCC)thickness 0.6mm~2.0mm
4) Structure:flat type of wire on tube condenser used at the back;
Performance
1)Surface with electrophoresis coating to prevent the corrosion.
2)Inner cleanness can meet the requirement of CFC &R134a cooling system.
3)Can satisfy the cooling capability requirements.


Specification of R134a refrigerator
Residual moisture ≤20mg/㎡
Residual impurity ≤30mg/㎡
Residual mineral oil ≤7mg/㎡
Residual chlorine ≤0.3mg/㎡
Residual paraffin ≤0.2mg/㎡

Specification of coating
Coating thickness thickness of cathodic electrophoresis Coating≥18μm;

Hardness of coating ≥2H

Impact of coating 50cm .kg/cm impact, no crack

Adhesion of coating ≥two grade

Flexibility of coating Around R=3D bebd 180°,no crack or no fall off

Color tolerance of △E≤1.5

Corrosion resistant (salt spray GB2423) ≥150h.


We can provide the product according customer's drawing or samples.
